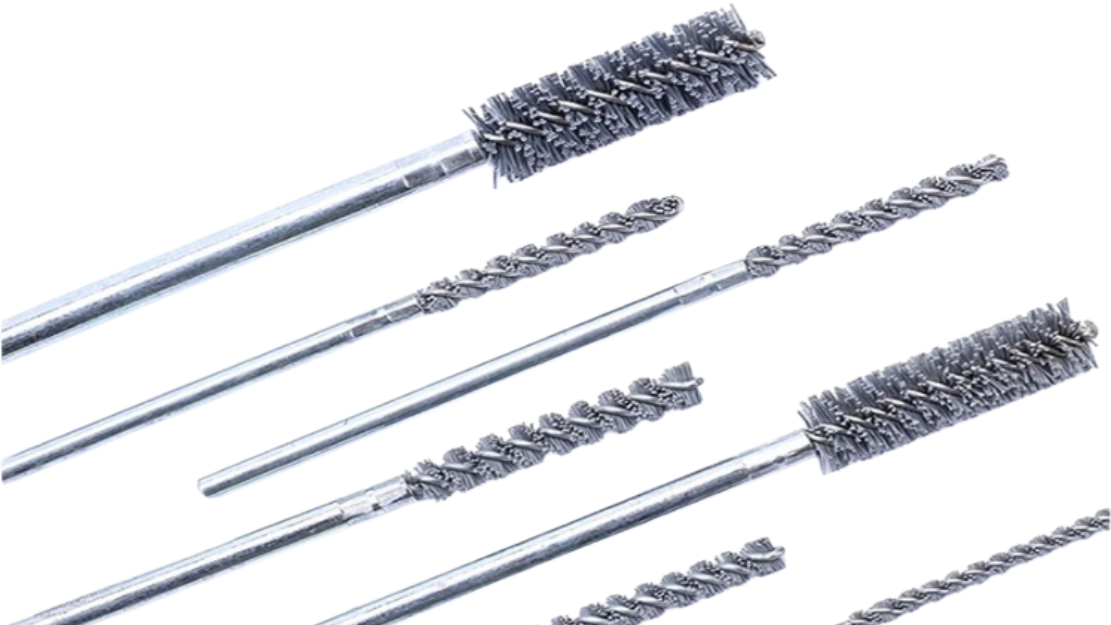

Internal Hole Deburring Brushes (SiC)
ESS BoreSweep™ are silicon-carbide (SiC) bore brushes for inner-hole cleaning, deburring, rust removal, and fine polishing. Uniform SiC filaments cut evenly, remove micro-burrs at intersections, and leave a bright, smooth bore without changing size. Suitable for CNCs, robots, hand tools, or bench machines.
What they do
- Deburr & blend cross-holes, threads, ports, and blind holes.
- Clean & de-rust pipe and tube IDs, cylinder bores, and threaded holes.
- Polish to low Ra; example case shows shiny, smooth finish after short cycle.
Why BoreSweep
- Uniform SiC filaments: strong cutting action with consistent pressure distribution and long life.
- Geometry-safe: non-metal abrasive filaments won’t scratch or deform the bore; no folded metal.
- Automation-ready: proven on CNC/automatic machines and robotic cells.
Running tips (from source example)
Example: Ø6 mm brush at ~1000 min⁻¹ for ~5 s produced a clean, shiny threaded bore. Adjust RPM/pressure to material and diameter.
Light radial contact; short reciprocation strokes; keep the bore lubricated/coolant as needed. (Best-practice inference based on source guidance and typical use.)
Features & Applications
